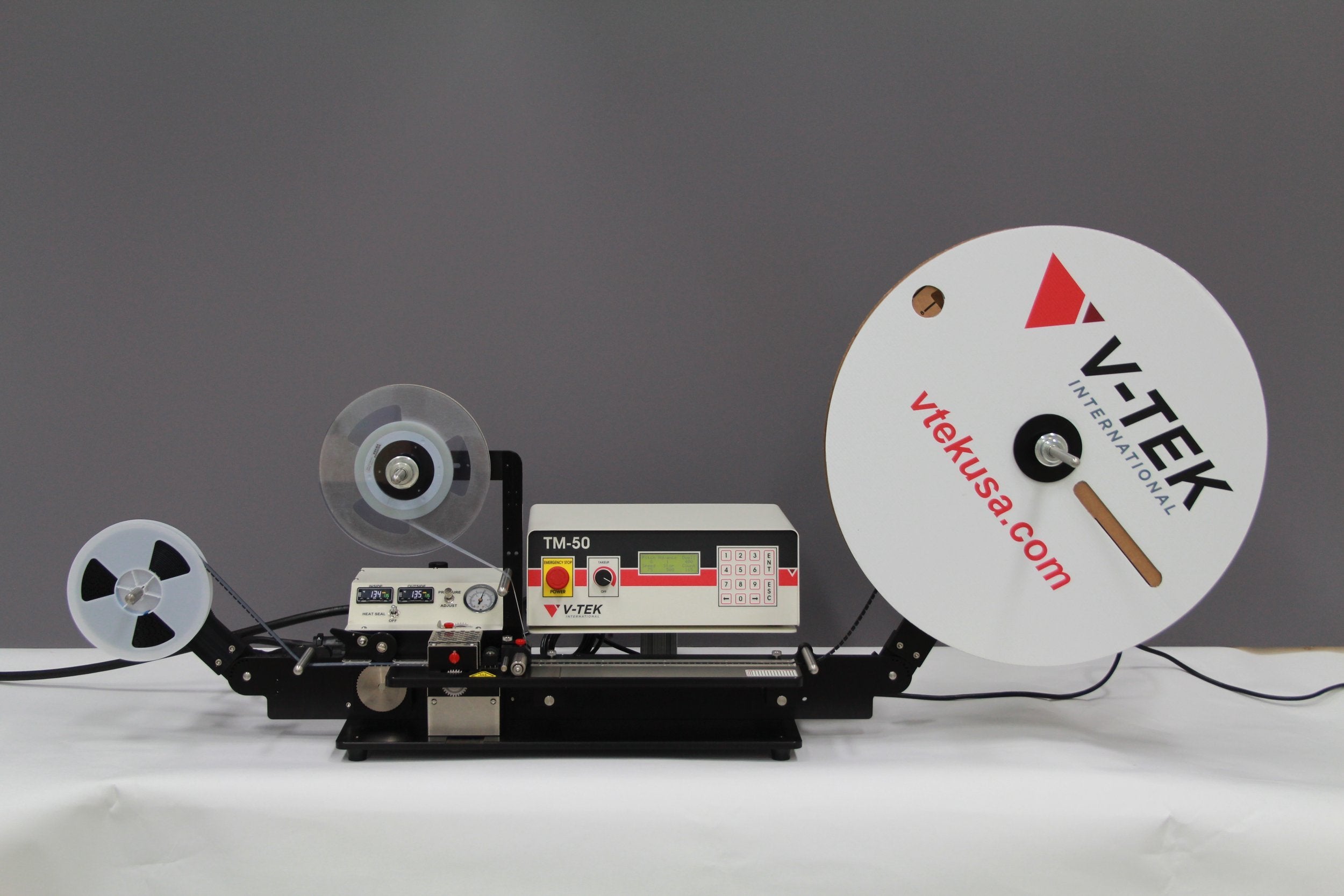

TM-50 Manual Taping Machine
Also available in XL and OEM models
Request pricing
This machine is configured to order. Send the form below and our team will follow up with a quote.
Overview
Large, small, or difficult-to-place parts are easy to tape with V-TEK's TM-50 Series. The microprocessor-controlled sealer and stepper motor drive assures precise handling of all taping parameters. Several advance speeds are selectable to accommodate problem parts and to minimize part jumping. The innovative setup and change-over design allow any taping operator to change over carrier and cover tapes in minutes. The TM-50 OEM is a slim line taping module that can be easily integrated to existing pick-and-place systems where placement of small parts or electrical components into tape and reel packaging is necessary.
Specifications
| Dimensions | H 15" (38cm) x W 55" (140cm) x D 20.5" (52cm) |
| Power required | 120/230 VAC, 50/60 Hz |
| Air | Compressed air 80 PSI |
| Tape width | Accommodates 8-72mm wide carrier tape |
Features & benefits
- Adjustable track assembly for tape widths up to 72mm (XL - 120mm)
- Independently controlled seal temperature for each side of the cover tape
- Dual stage, fully adjustable heat and PSA sealer assembly
- User-friendly software assures ease of set up and operation
- Software controlled advance movement of carrier tape (2mm - 144mm pitch)
